Variable Outline Code Examples​

Posted 12-03-2023 at 14:47 by shelbym

---

Introduction

CorelDRAW 2023 has a new Variable Outline Tool. You can also apply a variable outline via code. I have put together a number of VBA examples of how this works. Hopefully you will find these useful.

Sub TestAddVariableWidthNodes()
    Dim sLine As Shape

    Set sLine = ActiveLayer.CreateLineSegment(2, 8, 2, 5)
    sLine.Outline.VariableWidthNodes.Add 0.25, 0.125
    sLine.Outline.VariableWidthNodes.Add 0.5, 0.25
    sLine.Outline.VariableWidthNodes.Add 0.75, 0.125
End Sub

Sub TestClearVariableWidthNodes()
    Dim sLine As Shape

    Set sLine = ActiveLayer.CreateLineSegment(2, 8, 2, 5)
    sLine.Outline.VariableWidthNodes.Add 0.25, 0.125
    sLine.Outline.VariableWidthNodes.Add 0.5, 0.25
    sLine.Outline.VariableWidthNodes.Add 0.75, 0.125

    sLine.Outline.VariableWidthNodes.Clear
End Sub

Sub TestCopyVariableWidthNodes()
    Dim sLine As Shape, sLine2 As Shape

    Set sLine = ActiveLayer.CreateLineSegment(2, 8, 2, 5)
    sLine.Outline.VariableWidthNodes.Add 0.25, 0.125
    sLine.Outline.VariableWidthNodes.Add 0.5, 0.25
    sLine.Outline.VariableWidthNodes.Add 0.75, 0.125

    Set sLine2 = ActiveLayer.CreateLineSegment(4, 8, 4, 5)
    sLine2.Outline.VariableWidthNodes.Copy sLine.Outline.VariableWidthNodes
End Sub

Sub TestCountVariableWidthNodes()
    Dim sLine As Shape

    Set sLine = ActiveLayer.CreateLineSegment(2, 8, 2, 5)
    sLine.Outline.VariableWidthNodes.Add 0.25, 0.125
    sLine.Outline.VariableWidthNodes.Add 0.5, 0.25
    sLine.Outline.VariableWidthNodes.Add 0.75, 0.125

    MsgBox “Number of variable width nodes: “ & sLine.Outline.VariableWidthNodes.Count, , “Variable Width Nodes”
End Sub

Sub TestSelectedVariableWidthNodes()
    Dim sLine As Shape
    Dim vwNode1 As IVGVariableWidthNode, vwNode2 As IVGVariableWidthNode, vwNode3 As IVGVariableWidthNode

    Set sLine = ActiveLayer.CreateLineSegment(2, 8, 2, 5)
    Set vwNode1 = sLine.Outline.VariableWidthNodes.Add(0.25, 0.125)
    Set vwNode2 = sLine.Outline.VariableWidthNodes.Add(0.5, 0.25)
    Set vwNode3 = sLine.Outline.VariableWidthNodes.Add(0.75, 0.125)

    vwNode2.Selected = True
End Sub

Sub TestSidesVariableWidthNodes()
    Dim sLine As Shape
    Dim vwNode1 As IVGVariableWidthNode, vwNode2 As IVGVariableWidthNode, vwNode3 As IVGVariableWidthNode

    Set sLine = ActiveLayer.CreateLineSegment(2, 8, 2, 5)
    Set vwNode1 = sLine.Outline.VariableWidthNodes.Add(0.25, 0.125)
    Set vwNode2 = sLine.Outline.VariableWidthNodes.Add(0.5, 0.25)
    Set vwNode3 = sLine.Outline.VariableWidthNodes.Add(0.75, 0.125)

    vwNode1.Side1Width = 0.25
    vwNode3.Side2Width = 0.25
End Sub

Sub TestDeleteVariableWidthNodes()
    Dim sLine As Shape
    Dim vwNode1 As IVGVariableWidthNode, vwNode2 As IVGVariableWidthNode, vwNode3 As IVGVariableWidthNode

    Set sLine = ActiveLayer.CreateLineSegment(2, 8, 2, 5)
    Set vwNode1 = sLine.Outline.VariableWidthNodes.Add(0.25, 0.125)
    Set vwNode2 = sLine.Outline.VariableWidthNodes.Add(0.5, 0.25)
    Set vwNode3 = sLine.Outline.VariableWidthNodes.Add(0.75, 0.125)

    vwNode2.Delete
End Sub

Sub TestMoveVariableWidthNodes()
    Dim sLine As Shape
    Dim vwNode1 As IVGVariableWidthNode, vwNode2 As IVGVariableWidthNode, vwNode3 As IVGVariableWidthNode

    Set sLine = ActiveLayer.CreateLineSegment(2, 8, 2, 5)
    Set vwNode1 = sLine.Outline.VariableWidthNodes.Add(0.25, 0.125)
    Set vwNode2 = sLine.Outline.VariableWidthNodes.Add(0.5, 0.25)
    Set vwNode3 = sLine.Outline.VariableWidthNodes.Add(0.75, 0.125)

    vwNode1.PositionT = 0.125
    vwNode3.PositionT = 0.875
End Sub

Sub TestDetialsVariableWidthNodes()
    Dim sLine As Shape
    Dim vwNode1 As IVGVariableWidthNode, vwNode2 As IVGVariableWidthNode, vwNode3 As IVGVariableWidthNode
    Dim strDetails As String

    Set sLine = ActiveLayer.CreateLineSegment(2, 8, 2, 5)
    Set vwNode1 = sLine.Outline.VariableWidthNodes.Add(0.25, 0.125)
    Set vwNode2 = sLine.Outline.VariableWidthNodes.Add(0.5, 0.25)
    Set vwNode3 = sLine.Outline.VariableWidthNodes.Add(0.75, 0.125)

    vwNode1.Selected = True

    For i = 1 To sLine.Outline.VariableWidthNodes.Count
        strDetails = strDetails & i & “: “ & sLine.Outline.VariableWidthNodes(i).Width & “ Pos: “ & sLine.Outline.VariableWidthNodes(i).PositionT & “ Sel: “ & sLine.Outline.VariableWidthNodes(i).Selected & “ S1: “ & sLine.Outline.VariableWidthNodes(i).Side1Width & “ S2: “ & sLine.Outline.VariableWidthNodes(i).Side2Width & “ Width: “ & sLine.Outline.VariableWidthNodes(i).Width & vbNewLine
    Next i

    MsgBox strDetails, , “Variable Width Nodes”
End Sub

Conclusion

Have some fun coding Variable Outlines.



[dastin]

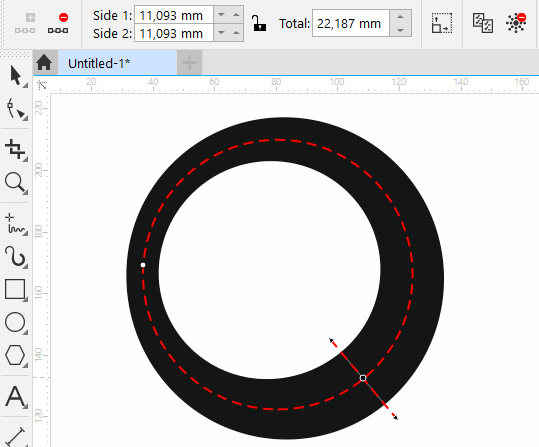

Вот как выглядит нововведение

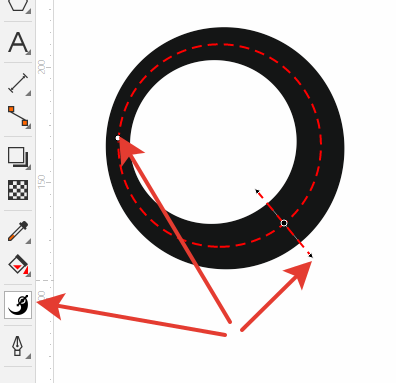

- новым инструментом Variable Outline Tool. добавляется контрольная точка
- сдвигом маркера управления меняется толщина контура

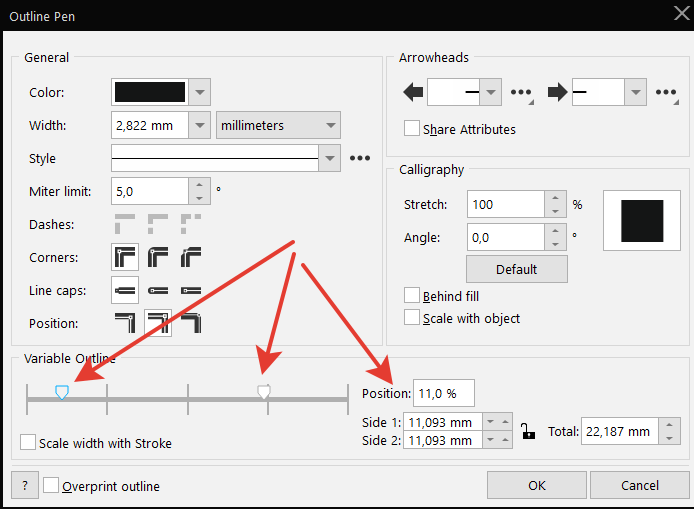

Окно Outline Pen теперь выглядит следующим образом

Вид Panel Properties при активном Variable Outline Tool ( V )
