[AI CC2023] Скрипт zamena

[egorus2010]

Нет ли его продвинутой версии?
Чтобы можно было выбрать Ancor Point, от которой заменится новый объект.
Типа, 9 типичных точек, как везде.

Сейчас это происходит от центра.



[creold]

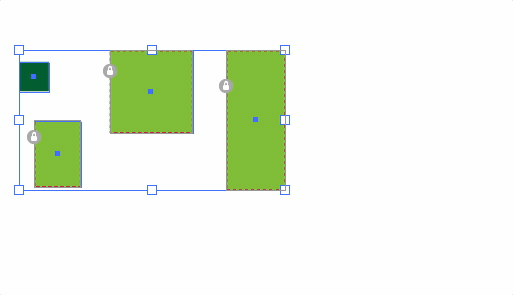

Такое?



[egorus2010]

Такое?

Да, такое окошко.



[creold]

// Replace bottom objects with top object
// Modification by Sergey Osokin (https://github.com/creold)
// Added 9 reference points

main();

function main() {
  var refPointArr = new Array(9);
  var refPointDef = [false, false, false, false, true, false, false, false, false];
  var refHints = ["Top Left", "Top", "Top Right", "Left", "Center", "Right", "Bottom Left", "Bottom", "Bottom Right"];

  if (app.documents.length === 0) return;

  mySelection = activeDocument.selection;
  if (mySelection.length < 2 || mySelection.typename === "TextRange") return;

  // DIALOG
  var win = new Window("dialog", "Zamena");
      win.orientation = "column";
      win.opacity = .97;

  var wrapper = win.add("group");
      wrapper.orientation = "row";
      wrapper.alignChildren = ["left", "top"];
      wrapper.spacing = 25;

  var refPnl = wrapper.add("panel", undefined, "Reference Point");
      refPnl.orientation = "row";
      refPnl.bounds = [0, 0, 116, 116];

  // Create reference point matrix
  var idx = 0;
  for (var i = 0; i < 3; i++) {
    for (var j = 0; j < 3; j++) {
      refPointArr[idx] = addRadio(refPnl, j, i, refPointDef[idx], refHints[idx]);
      idx++;
    }
  }

  var cancel = win.add("button", undefined, "Cancel", {name: "cancel"});
  var ok = win.add("button", undefined, "OK", {name: "ok"});

  ok.onClick = okClick;

  function okClick() {
    var refPoint = getReferencePoint(refHints, refPointArr);
    var goal = mySelection[0];

    for (var i = 1; i < mySelection.length; i++) {
      var currItem = mySelection[i];

      newItem = goal.duplicate();
      changePosition(newItem, currItem, refPoint);

      newItem.artworkKnockout = currItem.artworkKnockout;
      newItem.clipping = currItem.clipping;
      newItem.isIsolated = currItem.isIsolated;
      newItem.evenodd = currItem.evenodd;
      if (currItem.polarity) {
        newItem.polarity = currItem.polarity;
      }

      newItem.moveBefore(currItem);
      currItem.remove()
    }

    win.close();
  }

  cancel.onClick = win.close;

  function getReferencePoint(hints, arr) {
    var str = hints[4];
    for (var i = 0; i < arr.length; i++) {
      if (arr[i].value) {
        str = hints[i];
        break;
      }
    }
    return str.replace(/\s+/g, "").toUpperCase();
  }

  win.show();
}

function addRadio(place, x, y, val, info) {
  var rb = place.add("radiobutton", undefined, x);
  var step = 30;
  var x0 = y0 = 20;
  var d = 14; // Padding

  x = x0 + step * x;
  y = y0 + step * y;
  rb.bounds = [x, y, x + d, y + d];
  rb.value = val;
  rb.helpTip = info;

  return rb;
}

function changePosition(objA, objB, ref) {
  var deltaX = objB.geometricBounds[0] - objA.geometricBounds[0];
  var deltaY = objB.geometricBounds[1] - objA.geometricBounds[1];

  var deltaWidth = objB.width - objA.width;
  var deltaHeight = objA.height - objB.height;

  var offsetX = deltaWidth * 0.5;
  var offsetY = (objB.height - objA.height) * 0.5;

  var translateX = 0;
  var translateY = 0;

  switch (ref.toUpperCase()) {
    case "TOPLEFT":
      translateX = deltaX;
      translateY = deltaY;
      break;
    case "TOP":
      translateX = deltaX + offsetX;
      translateY = deltaY;
      break;
    case "TOPRIGHT":
      translateX = deltaWidth + deltaX;
      translateY = deltaY;
      break;
    case "LEFT":
      translateX = deltaX;
      translateY = deltaY - offsetY;
      break;
    case "CENTER":
      translateX = deltaX + offsetX;
      translateY = deltaY - offsetY;
      break;
    case "RIGHT":
      translateX = deltaWidth + deltaX;
      translateY = deltaY - offsetY;
      break;
    case "BOTTOMLEFT":
      translateX = deltaX;
      translateY = deltaHeight + deltaY;
      break;
    case "BOTTOM":
      translateX = deltaX + offsetX;
      translateY = deltaHeight + deltaY;
      break;
    case "BOTTOMRIGHT":
      translateX = deltaWidth + deltaX;
      translateY = deltaHeight + deltaY;
      break;
    default:
      break;
  }

  objA.translate(translateX, translateY);
}
